EPM1350EWT

Regular price $399.99
/

Only 10 items in stock!

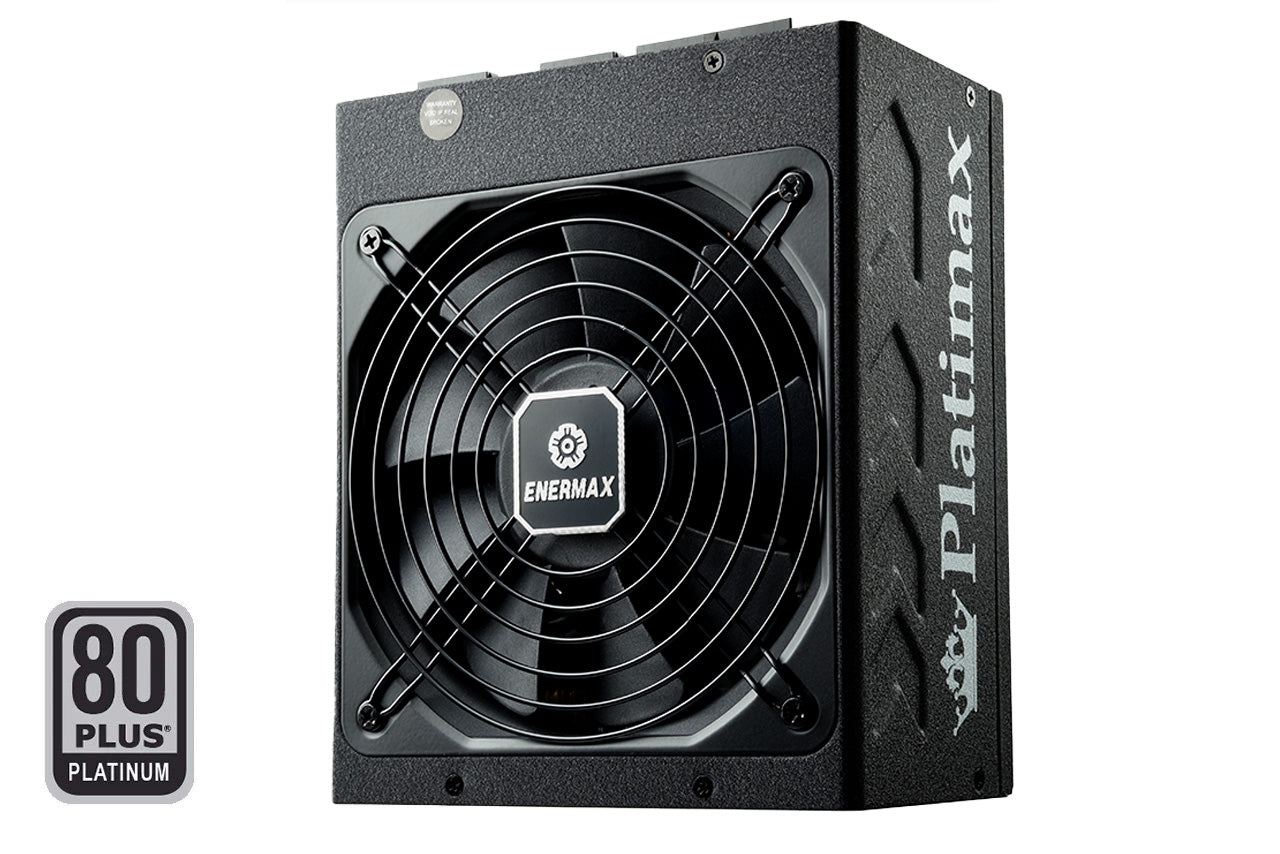

PLATIMAX 1350W is a full-modular power supply series with 80 PLUS®Platinum certified efficiency

10-Year Warranty

Cables & Connectors
Mainboard 24 Pin 1x
CPU 8+4 Pin 1x
CPU 8 Pin 1x
PCI-E 6+2 Pin (8 Pin) 8x
SATA 12x
4 Pin Molex 12x
FDD 2x
Download

pdf
Datasheet

pdf
Manual

Features

  • SERVER ready!
    SSI PSDG support for latest Intel® Core™ Extreme/i7/i5/i3, Xeon™ and AMD® Opteron™ and SLI® or CrossFireX™ and downward compatible with EPS12V v2.92, v2.8.
  • World ready!
    100-240VAC in with automatic adjustment and active PFC for global usage.
  • EMC ready!
    Full-scale electromagnetic filtering protects your system against radiation interferences.
  • CordGuard
    Fixing the AC cord tightly to avoid accidental shutdowns of your PC.
  • HeatGuard
    Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.
  • SafeGuard
    Industry-leading multiple protection circuitry of OCP, OVP, DC UVP, OPP, OTP, SCP & SIP.
  • SpeedGuard
    Advanced fuzzy logic fan speed control for optimal cooling and minimum noise. (Patented)
  • 100% 105℃ Japanese electrolytic capacitors
    Highest components standards for maximum durability and stability.
  • Ultimate Technology
    Clean and efficient layout and classic finish with decent black deco frame, Platimax considers both the aesthetics and technology of the overall design.
  • Enhanced Heatsink
    Unique one-piece shape design ensures uniform heat distribution and increases air flow.

89PLUS Ready!

  Server System @ 1000W load Annual KWh*2 Annual KWh wasted Annual Money wasted*3 Annual CO2 wasted*4
Efficiency*1 AC Draw (W) *2
Platimax 1000W 92% 1467.4 12854.4 - - -
Other ~82% 1000W 82% 1646.3 14421.6 1567.2 $235.24 / €344.78 971.7kg
Other ~80% 1000W 80% 1687.5 14782.5 1928.1 $289.41 / €424.18 1195.4kg
  • *1:Based on 230VAC input power. Figures might vary by system configuration and loading.
  • *2:Annual KWh is estimated based on 24 hours a day, 365 days a year runtime. Formula: AC Draw(W) x 24(hrs) x 365(days) / 1000
  • *3:1KWh= $0.1501 (California) / €0.22(Germany)/ Fare might vary by countries and regional providers.
  • *4:Calculation based on 1KWh= 0.62kg CO2. Figures might vary by countries.

FMQ Design

Extreme Density Transformer

ErP Lot 6 2013 ready!

Modular Ready!

Enhanced Heatsink

EPM1350EWT
Mainboard 24 Pin 1
[ 1x 60cm ]
CPU 8 Pin 1
[ 1x 65cm ]
2xPCI-E 6+2 Pin (8 Pin) 8
[ 4x 50cm ]
8P & 4P 12V CPU/RAM 1
[ 1x 60cm ]
SATA 8
[ 2x 45/ 15/ 15/ 15cm ]
2xSATA + 2x4 Pin Molex 4 + 4
[ 2x 45/ 15/ 15/ 15cm ]
4x4 Pin Molex + FDD 8 + 2
[ 1x 45/ 15/ 15/ 15/ 15cm ]
+3.3V(A) 24
+5V(A) 24
+12V1(A) 30
+12V2(A) 30
+12V3(A) 30
+12V4(A) 30
+12V5(A) 30
+12V6(A) 30
-12V(A) 0.5
+5Vsb(A) 3
Combined Wattage 12V (W) 1350
Combined Wattage 3.3V + 5V(W) 120
Model EPM1350EWT
Efficiency PLATINUM
Modular Full modular
Cable type Black flat
Total power (W) 1350
Input Voltage (V) 100-240
Input Current (A) 50
Input Frequency (Hz) 50-60
Fan size (mm) 135
Operating temperature (°C) 50
MTBF (hours) >100K
Protection OCP, OVP, UVP, UVP, OPP, OTP, SCP, SIP
Dimension (D x W x H), (mm) 180x150x86
