EXCLUSIVE
AMD Socket sTRX4 / TR4 Ready!
Quick & user-friendly mounting system for top-end AMD Threadripper CPUs (sTRX4 / TR4)


Uncompromised
100% sTRX4 / TR4 IHS Coverage
Tailored to 100% cover AMD Threadripper’s integrated heat spreader (IHS) for uncompromised cooling performance
Patented
Central Coolant Inlet (CCI) design and Shunt-Channel Technology (SCT)
Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer


Improved
EF1 Pump Design
Robust pump with precision engineering delivers extremely high flow rate up to 450 L/h for superior cooling performance
Luminous

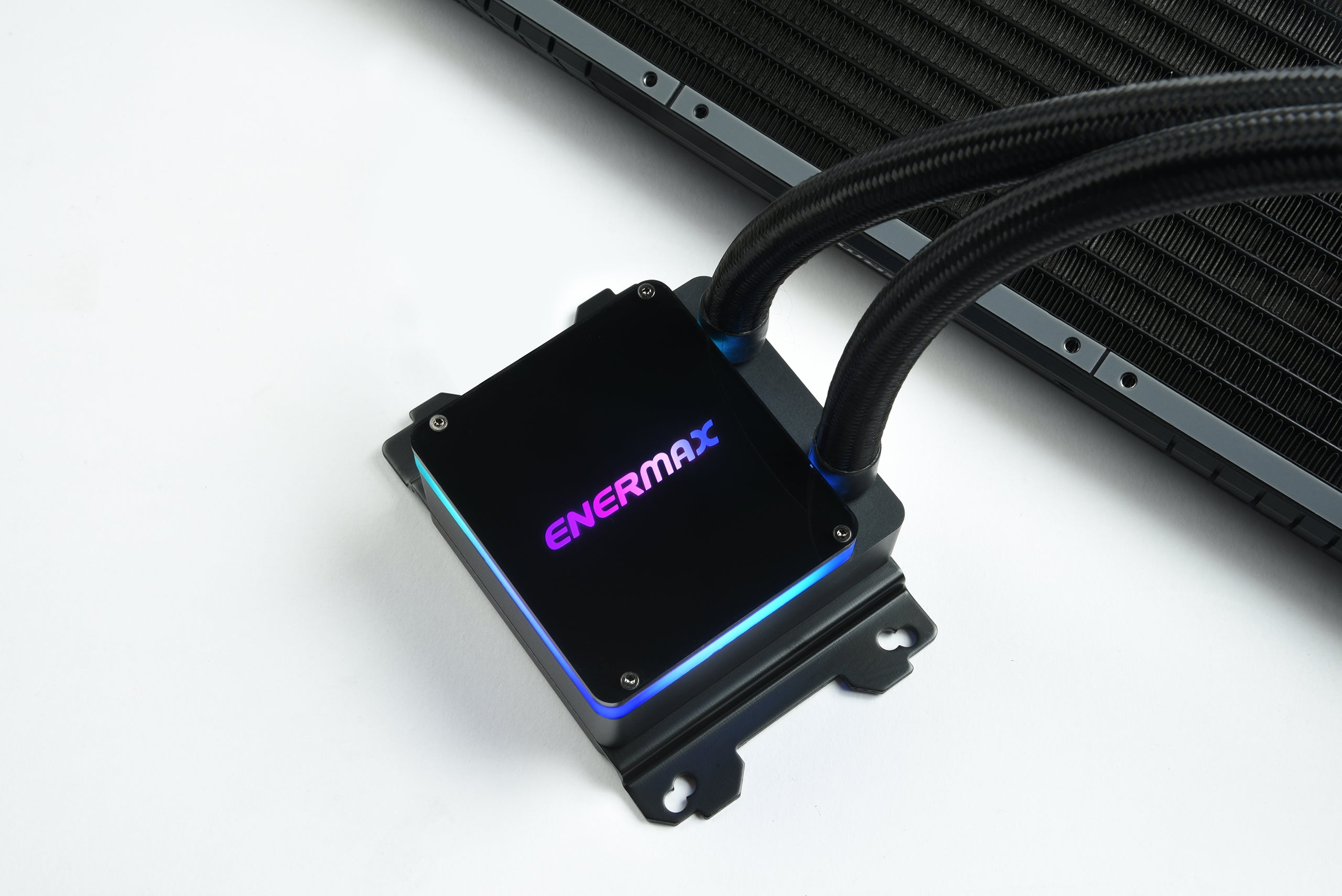

Aurabelt™
Unique RGB water block provides synchronizable RGB lighting via the latest addressable RGB header of motherboards for vivid rainbow lighting effects


Innovative
High Pressure Blades
Hi-pressure blade design enhances the cooling performance
Improved
Anti-vibration
Anti-vibration rubber pads provide noiseless stable operation

2 ways to control RGB lighting effects

Through Motherboard Software
Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)

Through ENERMAX RGB Control Box
Users can use the included control box to adjust preferred lighting effects (10 pre-set effects) brightness and speed

Premium Weaved Tubing
Premium 400mm weaved tubing is perfect for mainstream system builds
- intel_socket_support
- lighting_effect
- LIQTECH II TR4 240
- LIQTECH II TR4 280
- LIQTECH II TR4 360
- radiator_size
- socket_support
Model | ELC-LTTRTO240-TBP |
---|---|
CPU Socket | sTRX4 / sTR4 |
TDP (W) | 500W |
Cold Plate Material | Copper |
Radiator Material | Aluminum |
Radiator Dimension | 274 x 120 x 39 mm |
Pump Bearing | Ceramic Nano PI Bearing |
Pump MTBF | 100,000 hours |
Pump Rated Voltage (V) | 12 V |
Pump Rated Current (A) | 0.4 A |
Pump Rated Current - RGB LED (A) | 0.2 A (5V) |
Fan Dimension (mm) | 120 x 120 x 25 mm |
Fan Speed (RPM) | 500 - 2300 RPM ± 10% |
Fan Rated Voltage (V) | 12 V |
Fan Air Flow (CFM) | 23.81 ~ 102.17 CFM |
Fan Static Pressure (mm-H2O) | 0.673 ~ 6.28 mm-H2O |
Fan Rated Current (A) | 0.3 A |
Fan Maximum Noise (dBA) | 14 ~ 28 dBA |
Fan MTTF (hours) | ≧160,000 hours |
Fan Connector | 4 pin PWM |
Fan Screw | M3.5 |
Thermal Grease | Dow Corning® TC-5121C |
EAN | 4713157723642 |
---|---|
UPC | 819315023648 |
Box Dimension | 317 x 205 x 137mm |
Gross Weight / unit | 2.38 kg |
Carton Dimension | 435 x 332x 440mm |
Q'ty / carton | 6 |
Gross Weight / Carton | 15.38 kg |
Model | ELC-LTTRTO280-TBP |
---|---|
CPU Socket | sTRX4 / sTR4 |
TDP (W) | 500W |
Cold Plate Material | Copper |
Radiator Material | Aluminum |
Radiator Dimension | 313 x 140 x 28 mm |
Pump Bearing | Ceramic Nano PI Bearing |
Pump MTBF | 100,000 hours |
Pump Rated Voltage (V) | 12 V |
Pump Rated Current (A) | 0.4 A |
Pump Rated Current - RGB LED (A) | 0.2 A |
Fan Dimension (mm) | 140 x 140 x 25 mm |
Fan Speed (RPM) | 500 - 1500 RPM ± 10% |
Fan Rated Voltage (V) | 12 V |
Fan Air Flow (CFM) | 31.86 ~ 80.71 CFM |
Fan Static Pressure (mm-H2O) | 0.960 ~ 4.812 mm-H2O |
Fan Rated Current (A) | 0.2 A |
Fan Maximum Noise (dBA) | 14 ~ 25 dBA |
Fan MTTF (hours) | ≧160,000 hours |
Fan Connector | 4 pin PWM |
Fan Screw | M3.5 |
Thermal Grease | Dow Corning® TC-5121C |
EAN | 4713157723659 |
---|---|
UPC | 819315023655 |
Box Dimension | 364 x 183 x 171mm |
Gross Weight / unit | 2.46 kg |
Carton Dimension | 570 x 385 x 380mm |
Q'ty / carton | 6 |
Gross Weight / Carton | 15.7 kg |
Model | ELC-LTTRTO360-TBP |
---|---|
CPU Socket | sTRX4 / sTR4 |
TDP (W) | 500W |
Cold Plate Material | Copper |
Radiator Material | Aluminum |
Radiator Dimension | 394 x 120 x 28 mm |
Pump Bearing | Ceramic Nano PI Bearing |
Pump MTBF | 100,000 hours |
Pump Rated Voltage (V) | 12 V |
Pump Rated Current (A) | 0.4 A |
Pump Rated Current - RGB LED (A) | 0.2 A |
Fan Dimension (mm) | 120 x 120 x 25 mm |
Fan Speed (RPM) | 500 - 2300 RPM ± 10% |
Fan Rated Voltage (V) | 12 V |
Fan Air Flow (CFM) | 23.81 ~ 102.17 CFM |
Fan Static Pressure (mm-H2O) | 0.673 ~ 6.28 mm-H2O |
Fan Rated Current (A) | 0.3 A |
Fan Maximum Noise (dBA) | 14 ~ 28 dBA |
Fan MTTF (hours) | ≧160,000 hours |
Fan Connector | 4 pin PWM |
Fan Screw | M3.5 |
Thermal Grease | Dow Corning® TC-5121C |
EAN | 4713157723666 |
---|---|
UPC | 819315023662 |
Box Dimension | 443 x 205 x 137mm |
Gross Weight / unit | 2.74 kg |
Carton Dimension | 462 x 295 x 450mm |
Q'ty / carton | 4 |
Gross Weight / Carton | 11.3 kg |
